Realm Of Illusion
we are part of russian demoscene since 1994

Our releases

Title Screen Release Links Notes Credits Req

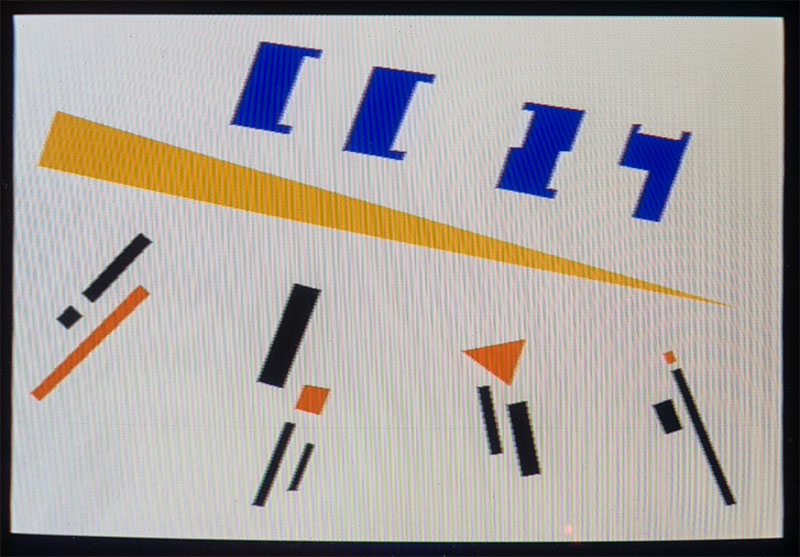

Waves

812b intro for PSX

26 August 2023 at Undefined'2023 Written in MIPS R3000 assembler. code: Frog Sony Playstation 1

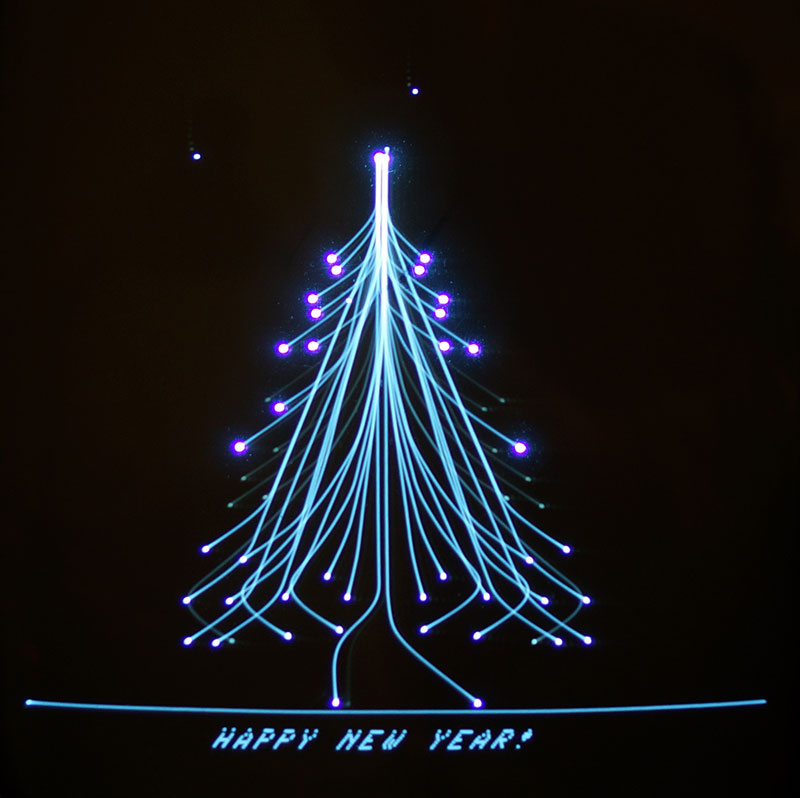

Christmas tree goes to a party

846b intro for Vectrex

7 January 2023 at Dihalt'2023 Winter
(ranked 1st at LowEnd demo compo)
Christmas tree using hardware curves on Vectrex vector display and music from BIOS ROM.
Written in 6809 assembler.
code: Frog Vectrex with ROM cartridge emulator
Realm Of Illusion logo

PETSCII graphics, Commodore 64

22 October 2022 at CAFE'2022
(Oldschool Textmode Graphics)
40x25, 16 colors text mode gfx: Frog Commodore 64
Sleet

256b intro for STM32L100 chip (ARM Cortex M3)

22 February 2021 at Chaos Constructions Winter'2021
(ranked 1st at Wild demo compo)
Written in C + ARM assembler. code: Frog STM32L100RCT6 + oscilloscope
Calctro

256b intro for HP-41

9 January 2021 at DiHALT Winter'2021
(ranked 11th at Lowend 256b intro compo)
Written in FOCAL. code: Frog HP-41CV + HP82106A
Viva la AON!

rendered graphics

22 February 2020 at Chaos Constructions Winter'2020
(Invitation graphics compo)
gfx: Frog
CCtro

256b intro for Fairchild Channel F

24 August 2019 at Chaos Constructions'2019
(Tiny intro compo)
Written in F8 assembler. code: Frog Fairchild Channel F + cartridge emulator

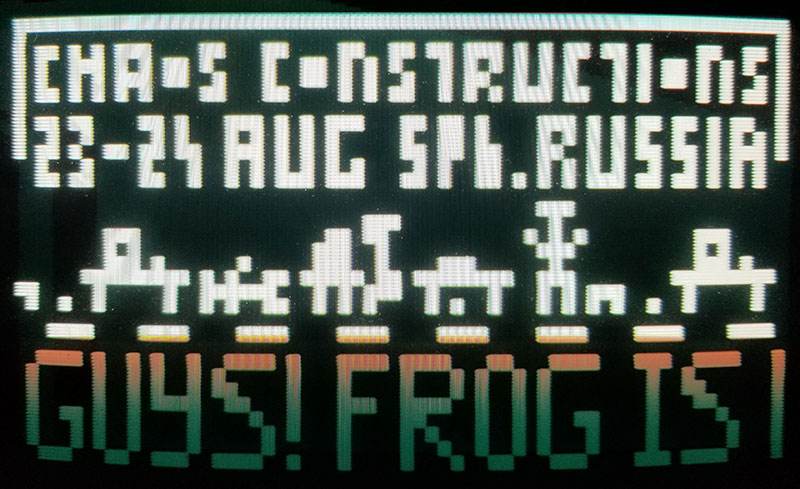

No shaders

256b intro for RCA Studio II

26 August 2018 at Chaos Constructions'2018
(ranked 4th at Tiny intro compo)
1st scene prod on this platform. Written in CDP1802 assembler. code: Frog RCA Studio II + cartridge emulator
Yolka

6kb intro for Mattel Intellivision

31 December 2017, than 6 January 2018 at DiHalt Lite Winter edition'2018
(ranked 4nd at LowEnd demo compo)
Plays lyrics from russian song "Yolochka" using Intellivoice speech synth module.
Written in CP1610 assembler.
code: Frog Mattel Intellivision with Intellivoice module and ROM cartridge emulator
Springs are going to the party

255b intro for Vectrex

27 August 2017 at Chaos Constructions'2017
(ranked 2nd at combined 256b intro compo)
Hardware curves on Vectrex vector display, sine table and music from BIOS ROM.
Written in 6809 assembler.
code: Frog Vectrex with ROM cartridge emulator
Rash

256b intro for Videopac (Magnavox Odyssey 2)

28 August 2016 at CC'2016
(ranked 6th at Tiny intro compo)
Using grid, chars and sprites
Written in 8048 assembler.
code: Frog
Videopac PAL with any ROM cartidge emulator (also should work on Magnavox Odyssey 2 NTSC with some side effects)
Speechtro

1k intro for TI-99/4a

3 July 2016 at DiHalt'2016
(ranked 1st at 1k lowend compo)
Graphics mode II (bitmap), synthesized speech
Written in TMS9900 assembler.
code: Frog
TI-99/4a with 32k ram expansion, speech synth and disk drive (NanoPEB is ok)
99tro

22k invitation intro for TI-99/4a

26 March 2016 at Revision'2016
(ranked 7th at oldskool demo compo)
Graphics mode II (bitmap), vgm music
Written in TMS9900 assembler.
code: Frog

music: Jrlepage
TI-99/4a with 32k ram expansion and disk drive (NanoPEB is ok)
Electric Force

233b intro for Vectrex

30 August 2015 at Chaos Constructions'2015
(ranked 2nd at combined 256b intro compo)
Utilizing non-standard feature of Vectrex vector display to draw curves via hardware.
Written in 6809 assembler.
code: Frog Vectrex with ROM cartridge emulator
Rainy

413 bytes intro for Vectrex

17 July 2015
First attempt to code for Vectrex (released later).
Written in 6809 assembler.
code: Frog

Vectrex with ROM cartridge emulator

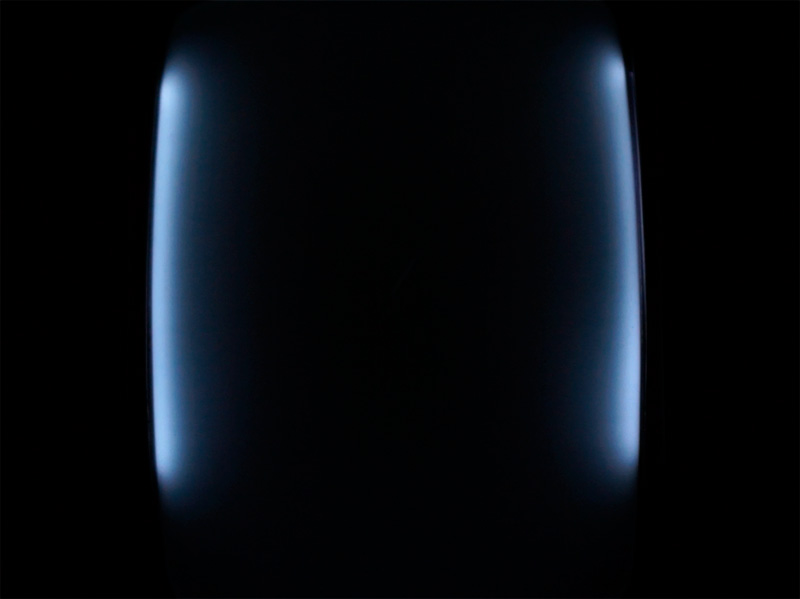

EmptyScreentro

128 bytes intro for Vectrex

15 July 2015
Experiment to display vectors beyond of screen.
Written in 6809 assembler.
code: Frog

music: Internal ROM

Vectrex with ROM cartridge emulator
Invitron

32k invitation intro for Vectrex

12 July 2015 at Solskogen'2015
(ranked 5th at oldskool demo compo)
Contains Tron titles style vector scrolling, digital sample and AY8912 music.
Written in 6809 assembler.
code: Frog

music: C-Jeff

Vectrex with ROM cartridge emulator
Rain

32k intro for PC (DOS)

planned to release at CC'2000, but failed to run on compo machine 640x400 pseudo-text mode used. EdLib sound system for FM sound.
Written mostly in inline TP 80x86 assembler
code: CodeRipper (aka Frog)

graphics: Frog

music: Vibrants

PC 386...P1, VGA, AdLib or SB (optional)
ENLiGHT'95 party report

report for PC (DOS)

14 November 1996 640x480x16 for title pictures, 360x480x256 x-mode for main part, 640x400x16 pseudotext mode for end titles. Written in TP and inline assembler code: CodeRipper (aka Frog)

additional code: WindWalker

graphics/fonts: Lord Ville, CodeRipper

music: Wind Dragon

english: StarGuest

camera: Wind Dragon, BigBug, CopperFeet

286...P1, VGA, SB (optional)
ENLiGHT'96 Invitation intro

64kb intro for PC (DOS)

14 August 1996 Made in special 640x400x16 pseudo-text mode, bitmap and attributes mapped to different memory areas. Title picture in 640x480x16. Self-made HTML 2.0 browser inside (~30% of specification). Written in TP and inline assembler. code: CodeRipper (Frog)

graphics: CodeRipper (Frog)

music: Knave

286...P1, VGA, AdLib or SB (optional)
PureSux

128 bytes intro for PC (DOS)

March 1996 as DEMO.DESIGN compo entry (ranked 8th) Nothing special. VGA 320x200x256, simple algorithm. Written in assembler. code: Frog

286...P1, VGA
Beam Attack

xm song

23 August 1995 at ENLiGHT'95 music: Wind Dragon

Trolls

xm song

23 August 1995 at ENLiGHT'95 music: Wind Dragon

6567

8kb intro for PC (DOS)

22 August 1995 Made in special 640x400x16 pseudo-text mode, bitmap and attributes mapped to different memory areas. Written in TP inline assembler. code: CodeRipper (Frog)

graphics: CodeRipper (Frog)

music: Wind Dragon

286..P1, VGA, AdLib or SB (optional)
ENLiGHT'95 Invitation intro

64kb intro for PC (DOS)

2 August 1995 Idea was to create intro like Commodore 64 style noter. VGA 640x480x16 mode. Written in 80x86 assembler. code: CodeRipper (aka Frog)

graphics: CodeRipper (aka Frog)

font 8x16: Lord Ville

music: Wind Dragon

286...P1, VGA, AdLib or SB (optional)
iNFUSED BYTES #2

disk magazine for PC (DOS)

9 January 1995 Both intro and diskmag itself - 640x480x16 VGA mode

Written in TP and inline 80x86 assembler

code: CodeRipper (aka Frog)

graphics: CodeRipper (aka Frog)

music: Crazy Kucher, BigBug

english: GhostRider

additional design: GhostRider

PC 386...P1, VGA, SB or GUS (optional)
LED

tool for PC (DOS)

internal release, 1994 Designed for creating simple graphics for using in special 640x400x16 pseudo-text mode (bitmap and colors mapped to separate memory areas). Written in TP and inline assembler. code: Frog

286...P1, VGA
CE

tool for PC (DOS).

internal release, 1994.
Lot of bugs. Never published.
Character editor for tall chars. Written in TP and inline assembler. 640x400x16 pseudotext mode. code: Frog

286...P1, VGA
Bytro!

6kb intro for PC (DOS)

16 April 1994 100% text mode 80x25 with custom character set. Split screen + change vram start address used. Raster bars (changing color synchronized to beam) code: CodeRipper (aka Frog)

english: GhostRider

PC 286...486, register compatible (!) VGA

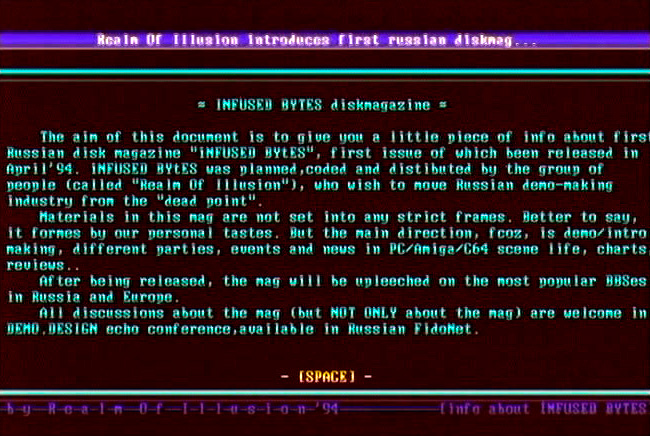

iNFUSED BYTES #1

disk magazine for PC (DOS)

5 April 1994 Intro - VGA 360x480x256, diskmag itself - 80x25 text mode with slightly changed parameters and split screen. Titles - 360x500x256

Written in 80x86 assembler

code: CodeRipper (aka Frog)

music: Andrew Zabolotny, BigBug

PC 286...486, VGA, SB or Covox (optional)

About Realm Of Illusion

Realm Of Illusion (ROi) - russian demogroup founded 5 April 1994 (release date of iNFUSED BYTES #1 diskmag) in St.Petersburg, Russia.

Initially there were two members - CodeRipper (Peter Sobolev aka Frog) as organizer and coder, Jumbo BigBug (Sergio Konvisaroff) as musician. It was early days of russian demoscene and networks. We have created DEMO.DESIGN echoconference (for 2-3 years Fidonet and BBS was the only way to spread information and files in xUSSR countries).

People posted several intros in DEMO.DESIGN and alot of code so, next year (1995) we decide to organize first russian demo party called ENLiGHT. At the same time Realm Of Illusion got Wind Dragon (Dmitry Letokhovsky) as musician and, several month later, Lord Ville (Alexey Kolpikov) as graphician and WindWalker (Mikhail Malakhov) as coder.

In 1996 we organized ENLiGHT'96. Some intros, reports and iNFUSED BYTES #2 were released. Lord Ville left ROi before ENLiGHT'96. DragonFair joined as coder (but in 1999 he dead in car accident).

ENLiGHT'97 was the last ENLiGHT demo party. In 1999 another group of demoscene lovers organized CHAOS CONSTRUCTIONS demo party (also in St.Petersburg). In 2004 we joined CC organizers and till now (2015) CHAOS CONSTRUCTIONS is a largest russian demo party focused on demoscene, vintage computers and unusual hardware.

In same years we've developed some Internet projects (iNFUSED BYTES online , Wandering Camera) but it wasn't directly related to demoscene.

In 2015-2016 Frog coded several intros for ancient platforms - Vectrex computer and TI-99/4a. Released at Solskogen, Chaos Constructions and Revision. So, ROi returns ;-)

ENLiGHT'95 demo party organizers (left to right, up to bottom): Disaster /TRIAD, Wind Dragon / ROi, Alexey, Dr.Bug / Future Hackers
CodeRipper (Frog) / ROi, Knave, Slash.
(August 1995)

Contacts

E-Mail: frog@enlight.ru

Frog's personal page: http://frog.enlight.ru
